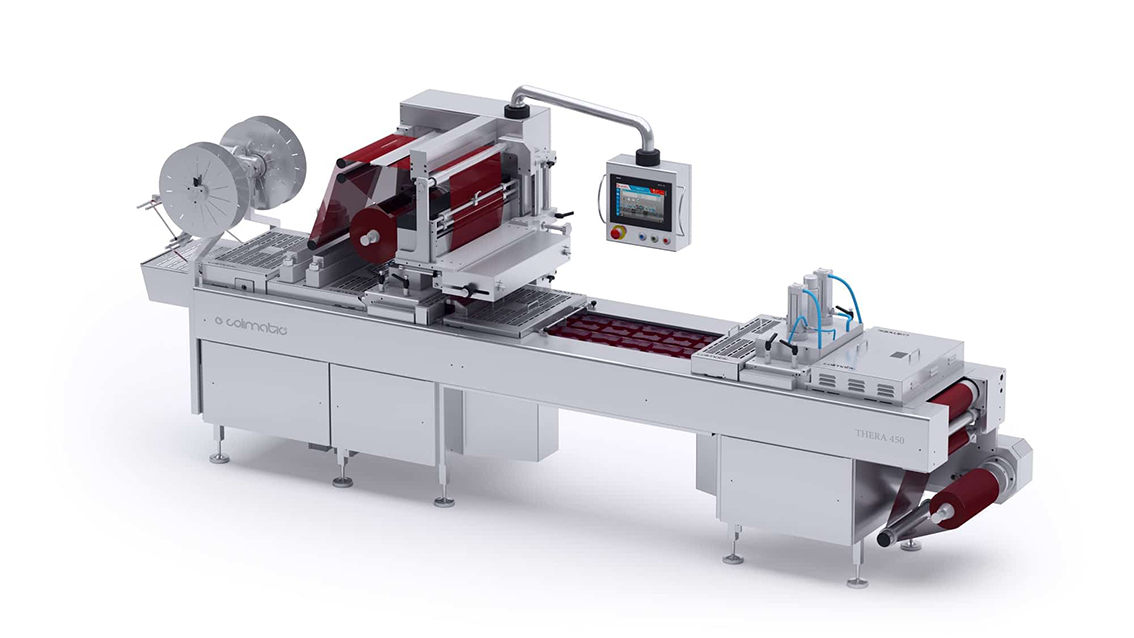

THERA 500

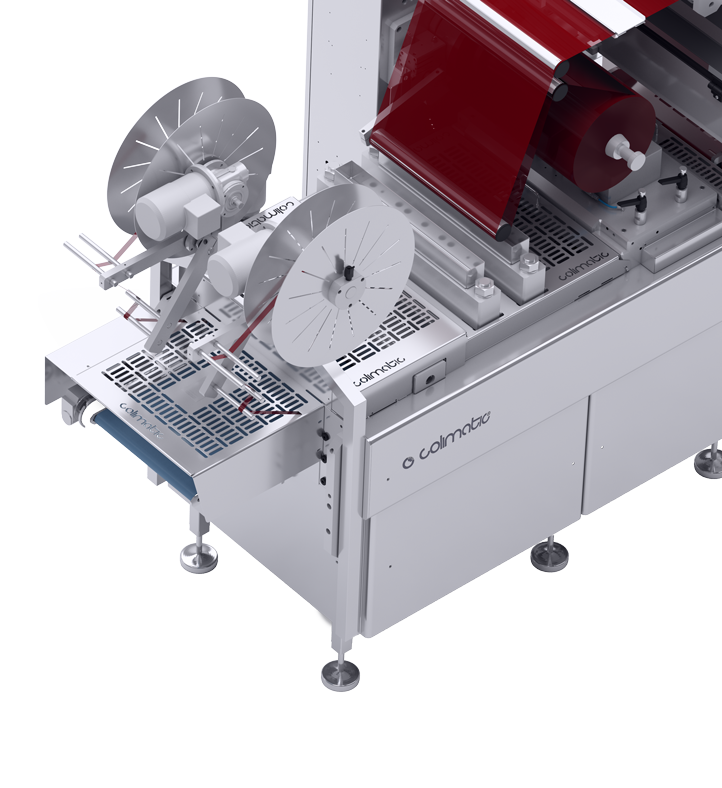

The best Colimatic technology at the service of medium-high production. Full versatility guaranteed by a large loading area and additional space for the integration of accessories after the sealing area.

Available for vacuum MAP, SKIN and SHRINK technologies.









Sustainability

Eco-sustainable materials

30% savings on film waste thanks to special vacuum system
Gear motors with high efficiency
Cooling circuit with water recycling (no water waste) opt

Technology

100% Recyclable paper
100% Recyclable mono-materials
Reduced film thickness min 60 my



HINGED CHAMBERS

with folding opening device to allow the fastest format change, cleaning & maintenance operations.





RESISTIVE-TOUCH OPERATOR PANEL

To allow a friendly HMI use in any working condition. The safety system detects hazards, stops the machine and activates the remote assistance service for faster reaction times.





FILM SAVING

up to 30%, Thanks to our unique technology utilizing vacuum and gas injection in sealing phase which reduces the quantity of waste material to only 10 mm of lateral scrap, and only on bottom film, leading to an outstanding single package costs.

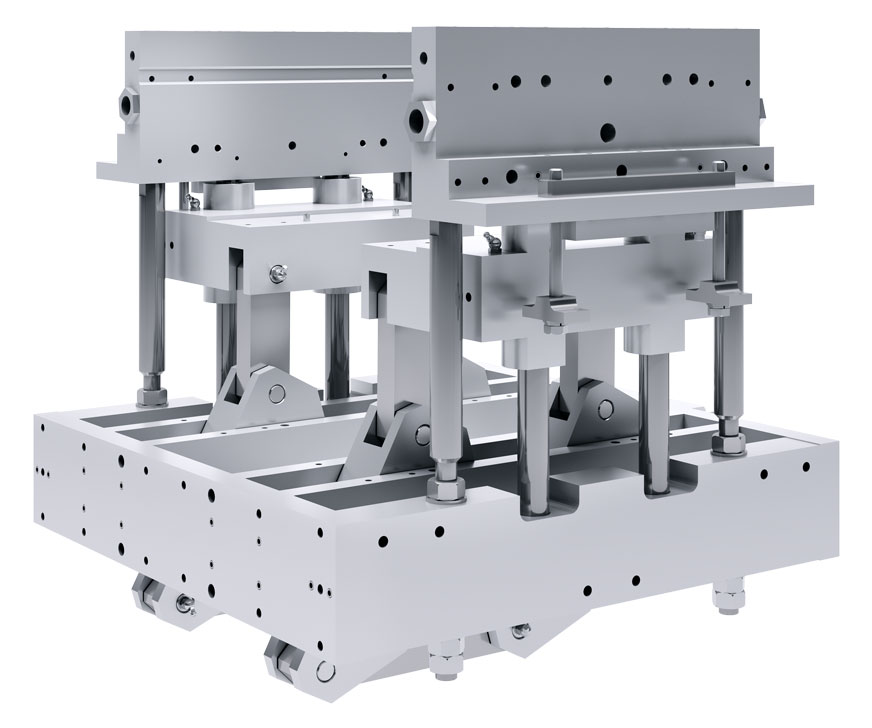

LIFTING MECHANISM

with 4-post lifting unit which consistently guarantees high level of sealing quality due to evenly distribution of the sealing pressure.



Technologies

Skinpack

Sealing

Vacuum

Modified atmosphere (MAP)

Shrink

Multiple Indexes



components

Electrical: PLC Siemens

Pneumatic: FESTO

Vacuum Pumps: BUSCH

Control interface: PLC Siemens



performance

Production: up to 15 cycles/min

Film material: film thickness up to 800 my

Top film reel Max diam: 300 mm

Bottom film reel Max diam: 350 mm



technical features

Machine length: 7000mm

Machine width: up to 1100mm

Machine height: up to 2000mm

Loading area: 1500mm

Bottom film width: up to 420mm

Top film width: up to 440mm

Max advancing index: up to 400mm

Pack max depth: up to 120mm
